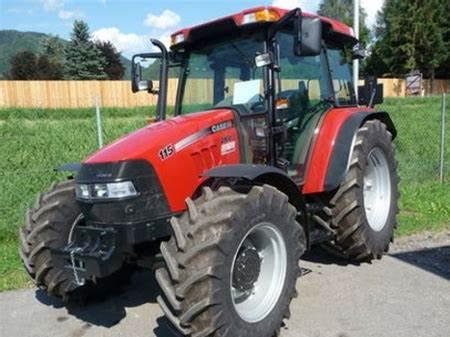

CaseIH JXU 115 Tractors

CaseIH JXU 115
Power: 111 hp
Date of manufacture :
2009 - 2012
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH JXU 115 Power
Engine (gross):111.3 hp
83.0 kW
CaseIH JXU 115 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:Electro-hydraulic rear and limited slip front. Electro-hydraulic front optional.
Steering:power
Brakes:wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Cab standard.
Transmissions:12-speed mechanical shuttle
 24-speed two-speed power shift
 12-speed power shuttle
Hydraulics
Rear valves:3*Optional
Mid valves:2*Optional
Pump flow:16.1 gpm
60.9 lpm
Steering flow:9.5 gpm
36.0 lpm
Tractor hitch
Rear lift:10803 lbs
4900 kg
 12897 lbs
5850 kg *Optional
Front lift:5512 lbs
2500 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E/1000
Front PTO:independent
Front RPM:1000
Dimensions & Tires
Wheelbase:92.5 inches
234 cm
Weight:9369 lbs
4249 kg
Front tire:380/80R24
Rear tire:480/70R34
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
