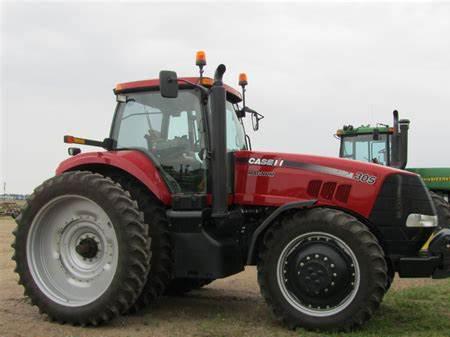

CaseIH Magnum 305 Tractors
 |
|
Power: 304 hp
Date of manufacture : 2008 - 2011 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $221,592 (2010 )
|
| CaseIH Magnum 305 Power |
| Engine: | 304 hp
226.7 kW
|
| PTO (claimed): | 255 hp
190.2 kW
|
| Drawbar (tested): | 220.34 hp
164.3 kW
|
| PTO (tested): | 299.70 hp
223.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.
|
| Transmissions: | 18-speed full powershift
|
| | 19-speed full powershift
|
| | 23-speed full powershift
|
| Photos |
| | CaseIH Magnum 305 photos... |
| Capacity |
| Fuel: | 180 gal
681.3 L
|
| Hydraulic system: | 45.5 gal
172.2 L
|
| Hydraulics |
| Type: | PFC
|
| Capacity: | 45.5 gal
172.2 L
|
| Valves: | 3 to 5
|
| Total flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm (optional)
|
| | 75 gpm
283.9 lpm (optional Twin-Flow)
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| | IVN/III optional
|
| Rear lift: | 14,070 lbs
6382 kg
|
| | 16,375 lbs
7427 kg (optional)
|
| | 18,900 lbs
8573 kg (optional)
|
| Power Take-off (PTO) |
| Rear RPM: | 1000
|
| | 540/1000 optional
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 20630 to 21585 pounds
|
| Front tire: | 380/80R38
|
| Rear tire: | 480/80R50
|
| Full dimensions and tires ... |
| Magnum 305 Serial Numbers |
| Location: | Front-right tractor frame, above axle.
|
photo of Magnum 305 serial number
| |
