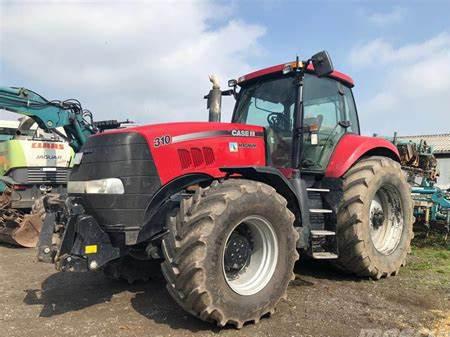

CaseIH Magnum 310 Tractors
 |
|
Power: 310 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $275,312 (2014 Power Shift )
|
| Original price: | $288,654 (2014 CVT )
|
| CaseIH Magnum 310 Power |
| Engine (gross): | 310 hp
231.2 kW
|
| Engine (max): | 345 hp
257.3 kW
|
| PTO (claimed): | 265 hp
197.6 kW
|
| Drawbar (tested): | 234.51 hp
174.9 kW
|
| PTO (tested): | 313.71 hp
233.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | Wet disc
|
| Cab: | Cab standard with air-conditioning. AFS ready
|
| Transmissions: | 19-speed full power shift
|
| | 18-speed full power shift
|
| | continuously variable transmission (CVT)
|
| Photos |
| | CaseIH Magnum 310 photos... |
| Hydraulics |
| Type: | variable displacement pressure-flow compensating (PFC)
|
| Valves: | 4 to 6
|
| Pump flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm (optional)
|
| | 75 gpm
283.9 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| | III/IVN (optional)
|
| Control: | electronic lower link draft sensing
|
| Rear lift (at 24"/610mm): | 15900 lbs
7212 kg
|
| | 17500 lbs
7938 kg (optional)
|
| Rear Arms: | Adjustable quick coupler
|
| Drawbar: | Cat. 3
|
| | Cat. 4 (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | Independent
|
| Rear RPM: | 1000 (1.75)
|
| | 540/1000 (1.375 optional)
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm
|
| | 122 inches
309 cm (CVT)
|
| Weight: | 28800 lbs
13063 kg
|
| Front tire: | 420/8R34
|
| Rear tire: | 480/80R50 (duals )
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
