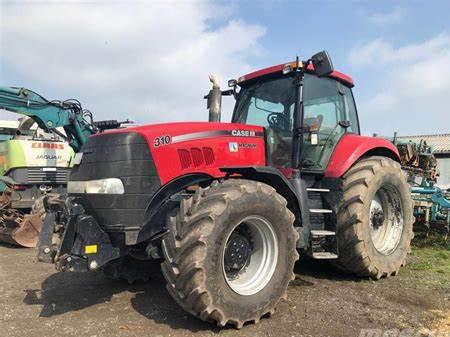

CaseIH Magnum 310 Tractors
 |
|
Power: 309 hp
Date of manufacture : 2005 - 2011 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconin, USA
|
| CaseIH Magnum 310 Power |
| Engine (gross): | 309 hp
230.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Steering: | hydrostatic power
|
| Cab: | Surveyor cab standard with air-conditioning.
|
| Transmissions: | 19-speed full power shift
|
| | 23-speed creeper
|
| Photos |
| | CaseIH Magnum 310 photos... |
| Hydraulics |
| Type: | pressure flow compensating
|
| Valves: | 4 or 5
|
| Pump flow: | 37.5 gpm
141.9 lpm (early)
|
| | 43.9 gpm
166.2 lpm (late)
|
| | 59.2 gpm
224.1 lpm (High Flow)
|
| | 75 gpm
283.9 lpm (Twin Flow)
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| Rear lift (at 24"/610mm): | 16360 lbs
7420 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 1800@1000
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 20670 lbs
9375 kg
|
| Front tire: | 600/65R30
|
| Rear tire: | 710/70R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
