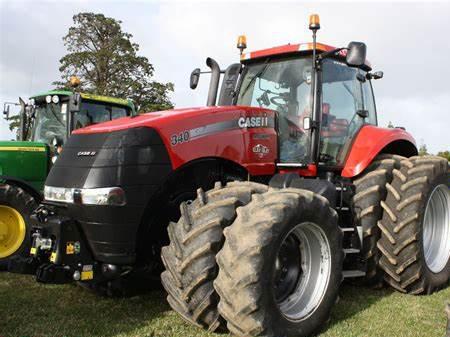

CaseIH Magnum 340 Tractors
 |
|
Power: 340 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| CaseIH Magnum 340 Power |
| Engine (gross): | 340 hp
253.5 kW
|
| Engine (max): | 374 hp
278.9 kW
|
| PTO (claimed): | 290 hp
216.3 kW
|
| Drawbar (tested): | 256.51 hp
191.3 kW
|
| PTO (tested): | 337.37 hp
251.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Magnum Surveyor cab standard. Optional cab suspension.
|
| Transmissions: | 19-speed full power shift
|
| | 18-speed full power shift
|
| | 23-speed creeper
|
| | continuously variable transmission
|
| Photos |
| | CaseIH Magnum 340 photos... |
| Hydraulics |
| Type: | pressure-flow compensating
|
| Rear valves: | 4 to 6
|
| Total flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm (optional)
|
| | 75 gpm
283.9 lpm (optional)
|
| Tractor hitch |
| Rear Type: | 4/3
|
| Rear lift: | 17,400 lbs
7892 kg (109cm links)
|
| | 19,400 lbs
8799 kg (96cm links)
|
| Front Hitch: | optional
|
| Front lift: | 9,426 lbs
4275 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| | 540/1000 (1-3/8)
|
| Front PTO: | optional
|
| Front RPM: | 1000 (1-3/8)
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm
|
| Weight: | 28,230 lbs
12805 kg
|
| Full dimensions and tires ... |
| Magnum 340 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle.
|
photo of Magnum 340 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
