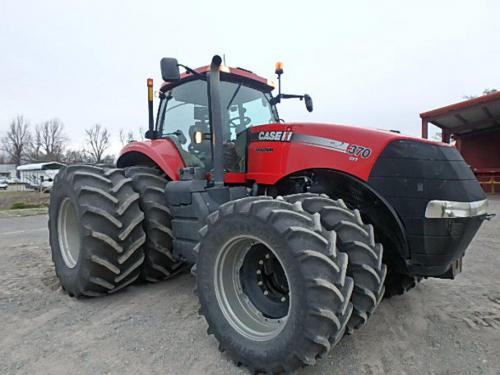

CaseIH Magnum 370 Tractors
 |
|
Power: 367 hp
Date of manufacture : 2012 - 2013 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| CaseIH Magnum 370 Power |
| Engine (gross): | 367 hp
273.7 kW
|
| Engine (max): | 419 hp
312.4 kW
|
| PTO (claimed): | 305 hp
227.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission
|
| Photos |
| | CaseIH Magnum 370 photos... |
| Hydraulics |
| Type: | variable displacement pressure flow compensating (PFC)
|
| Valves: | 4 to 6
|
| Pump flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm (optional)
|
| | 75 gpm
283.9 lpm (optional)
|
| Tractor hitch |
| Rear Type: | IVN/III
|
| | III (optional)
|
| Control: | electronic lower link draft sensning
|
| Rear lift (at 24"/610mm): | 17500 lbs
7938 kg
|
| | 14375 lbs
6520 kg (optional)
|
| Rear Arms: | adjustable quick coupler
|
| Drawbar: | Cat. 4
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 124 inches
314 cm
|
| Weight: | 31190 lbs
14147 kg
|
| Front tire: | 420/85R34
|
| Rear tire: | 480/80R50 (duals)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
