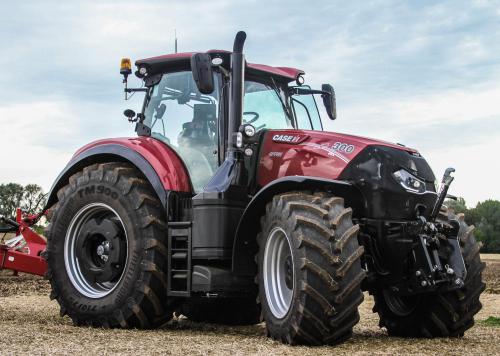

CaseIH Optum 300 Tractors
 |
|
Power: 300 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | St. Valentin, Austria
|
| Original price: | $283,215 (2016 )
|
| CaseIH Optum 300 Power |
| Engine (gross): | 300 hp
223.7 kW
|
| Engine (max): | 313 hp
233.4 kW
|
| PTO (claimed): | 270 hp
201.3 kW
|
| Drawbar (tested): | 226.5 hp
168.9 kW
|
| PTO (tested): | 290.7 hp
216.8 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | wet disc
|
| Trailer brakes: | hydraulic
|
| Cab: | SurroundVision cab standard with air-conditioning. AccuGuide
|
| Transmission: | continuously variable transmission (CVT)
|
| Photos |
| | CaseIH Optum 300 photos... |
| Hydraulics |
| Type: | closed center pressure flow compensating (PFC)
|
| Rear valves: | 4 or 5
|
| Mid valves: | 1 or 3
|
| Pump flow: | 43.6 gpm
165.0 lpm
|
| | 58 gpm
219.5 lpm *Optional
|
| SCV flow: | 37 gpm
140.0 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| | IVN*Optional
|
| Control: | electronic draft control
|
| Rear lift (at 24"/610mm): | 19180 lbs
8700 kg
|
| Rear Arms: | telescopic link ends
|
| Front lift: | 9700 lbs
4399 kg
|
| Drawbar: | Cat. 3
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000/1000E (1.375)
|
| | 1000/1000E (1.75)*Optional
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000/1000E (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 117.3 inches
297 cm
|
| Weight: | 23149 lbs
10500 kg
|
| Front tire: | 420/85R24
|
| Rear tire: | 480/80R50
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 150
|
| | 200*Optional
|
| Battery volts: | 12
|
|
