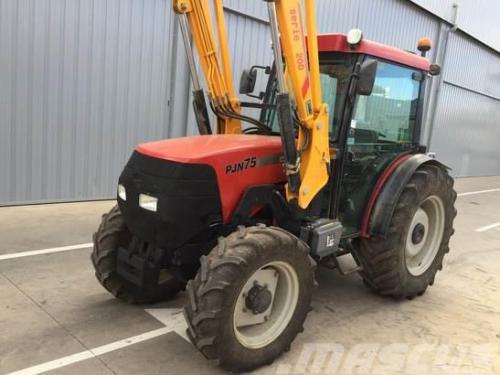

CaseIH PJ75 Tractors

CaseIH PJ75
Power: 75 hp
Date of manufacture :
2001 - 2004
Production
Manufacturer:CaseIH
Type:Utility tractor
Variants
PJ75:utility
PJN75:orchard
PJV75:vineyard
CaseIH PJ75 Power
Engine:75 hp
55.9 kW
CaseIH PJ75 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Four-post ROPS.
Transmissions:12-speed synchromesh
 24-speed
 24-speed two-speed power shift
Hydraulics
Valves:3*Optional.
Pump flow:10.41 gpm
39.4 lpm
Steering flow:5.2 gpm
19.7 lpm
Tractor hitch
Rear Type:I
Control:top-link draft sensing
Rear lift (at ends):5291 lbs
2399 kg
Power Take-off (PTO)
Rear PTO:independent
Dimensions & Tires
2WD Wheelbase:83.1 inches
211 cm
4WD Wheelbase:87.6 inches
222 cm
Weight:5677 lbs
2575 kg
Rear tire:380/70R28
Full dimensions and tires ...
