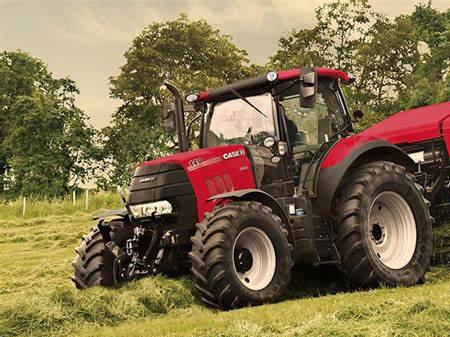

CaseIH Puma 140 X Tractors
 |
|
Power: 140 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | St. Valentin, Austria
|
| CaseIH Puma 140 X Power |
| Engine (gross): | 140 hp
104.4 kW
|
| Engine (max): | 155 hp
115.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic
|
| | pneumatic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 18-speed partial power shift
|
| | 19-speed partial power shift
|
| Hydraulics |
| Type: | pressure flow compensated
|
| Pressure: | 3045 psi
210.0 bar
|
| Rear valves: | 4
|
| Mid valves: | 3
|
| Pump flow: | 29.1 gpm
110.1 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | electronic draft control
|
| Rear lift (at 24"/610mm): | 14586 lbs
6616 kg
|
| Front lift: | 7873 lbs
3571 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000 (1.375)
|
| | 540/1000/1000E (1.375)
|
| Engine RPM: | 540@1969
540E@1546
1000@1893
1000E@1621
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@1895
|
| Dimensions & Tires |
| Front tire: | 380/85R28
|
| Rear tire: | 460/85R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| | 200*Optional
|
| Battery volts: | 12
|
|
