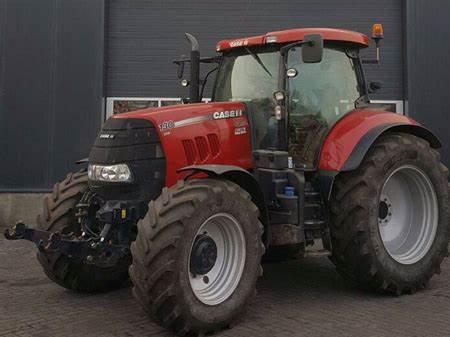

CaseIH Puma 130 Tractors

CaseIH Puma 130
Power: 131 hp
Date of manufacture :
2011 - 2013
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
CaseIH Puma 130 Power
Engine (gross):131 hp
97.7 kW
Engine (max):171 hp
127.5 kW
PTO (claimed):105 hp
78.3 kW
Drawbar (tested):98.4 hp
73.4 kW
PTO (tested):134.6 hp
100.4 kW
CaseIH Puma 130 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Cab:Cab standard. Optional cab suspension.
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
Capacity
Fuel:71 gal
268.7 L
 86 gal
325.5 L (optional)
Exhaust fluid (DEF):12.7 gal
48.1 L
Hydraulic system:19.5 gal
73.8 L
Hydraulics
Type:closed center pressure flow compensating (PFC)
Capacity:19.5 gal
73.8 L
Rear valves:3 to 4 (mechanical)
 3 to 5 (electronic)
Pump flow:29 gpm
109.8 lpm
 32 gpm
121.1 lpm (optional)
Tractor hitch
Rear Type:2/3N
Rear lift:7,900 lbs
3583 kg
 9,200 lbs
4173 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:107.6 inches
273 cm
 109.8 inches
278 cm (suspended front axle)
Weight:13600 lbs
6168 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
 200*Optional
Batteries:2
Battery CCA:650
Battery volts:12
