| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Basildon, England
|
| Original price: | $105,788 (2010 )
|

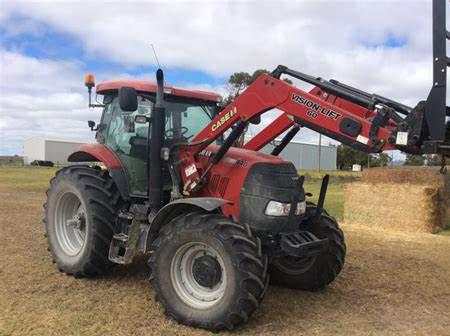

| CaseIH Puma 140 Power |
| Engine (gross): | 140 hp
104.4 kW
|
| PTO (claimed): | 120 hp
89.5 kW
|
| Drawbar (tested): | 99.9 hp
74.5 kW
|
| PTO (tested): | 137.5 hp
102.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Trailer brakes: | hydraulic optional
|
| Cab: | Cab standard with air-conditioning. Optional suspended cab.
|
| Transmissions: | 18-speed partial power shift
|
| | 19-speed
|
| Photos |
| | CaseIH Puma 140 photos... |
| Capacity |
| Fuel: | 79 gal
299.0 L *Prior to 2010
|
| | 75 gal
283.9 L *After 2010
|
| Hydraulic system: | 19.6 gal
74.2 L
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Capacity: | 19.6 gal
74.2 L
|
| Valves: | 2 to 4
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 43.7 gpm
165.4 lpm
|
| Steering flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Control: | electronic draft control
|
| Rear lift: | 12,185 lbs
5527 kg
|
| | 15,197 lbs
6893 kg (100mm cylinders)
|
| Rear Arms: | flexible link ends with telescopic stabilizer
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 107.8 inches
273 cm
|
| | 109.7 inches
278 cm (suspended front axle)
|
| Weight: | 13230 to 13725 pounds
|
| Front tire: | 14.9R28
|
| Rear tire: | 18.4R38
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120*Prior to 2010
|
| | 150*After 2010
|
| | 200*Optional after 2010
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
