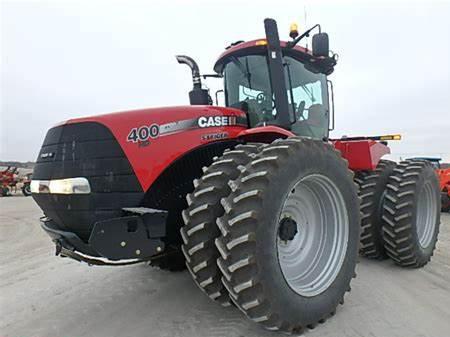

CaseIH Steiger 400 Tractors
 |
|
Power: 400 hp
Date of manufacture : 2011 - 2013 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| CaseIH Steiger 400 Power |
| Engine: | 400 hp
298.3 kW
|
| PTO (claimed): | 340 hp
253.5 kW
|
| Drawbar (tested): | 328.56 hp
245.0 kW
|
| PTO (tested): | 400.10 hp
298.4 kW
|
| CaseIH Steiger 400 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Cab: | Surveyor cab standard.
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | CaseIH Steiger 400 photos... |
| Hydraulics |
| Type: | pressure flow compensating (PFC)
|
| Rear valves: | 4 to 8
|
| Pump flow: | 35 gpm
132.5 lpm
|
| Total flow: | 42 gpm
159.0 lpm
|
| | 56 gpm
212.0 lpm (High Flow)
|
| | 113 gpm
427.7 lpm (Twin Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift: | 20,000 lbs
9072 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| Dimensions & Tires |
| Wheelbase: | 148 inches
375 cm
|
| Weight: | 36,048 lbs
16351 kg
|
| Full dimensions and tires ... |
| Steiger 400 Serial Numbers |
| Location: | Serial number plate on the front left tractor fender, near the steps.
|
photo of Steiger 400 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
