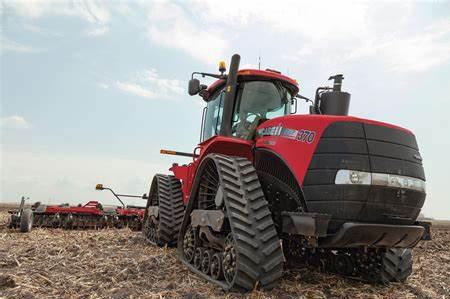

CaseIH Steiger 370 Tractors
 |
|
Power: 370 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $314,043 (2015 )
|
| Variants |
| 370: | wheeled tractor
|
| 370RT: | crawler tractor
|
| CaseIH Steiger 370 Power |
| Engine: | 370 hp
275.9 kW
|
| PTO (claimed): | 311 hp
231.9 kW
|
| CaseIH Steiger 370 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Steering: | hydraulic articulated
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional.
|
| Cab: | Surveyor Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | pressure flow compensated
|
| Valves: | 4 to 8
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm *High Flow option
|
| | 108 gpm
408.8 lpm *TwinFlow option
|
| SCV flow: | 35 gpm
132.5 lpm
|
| Tractor hitch |
| Rear Type: | IVN
|
| | III*Optional.
|
| Rear lift (at 24"/610mm): | 20000 lbs
9072 kg
|
| Rear Arms: | quick coupler
|
| Drawbar: | Cat. 4
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000*1.75 inch shaft
|
| Dimensions & Tires |
| Wheelbase: | 148 inches
375 cm
|
| Weight: | 38759 lbs
17581 kg
|
| Front tire: | 710/70R42
|
| Rear tire: | 710/70R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
