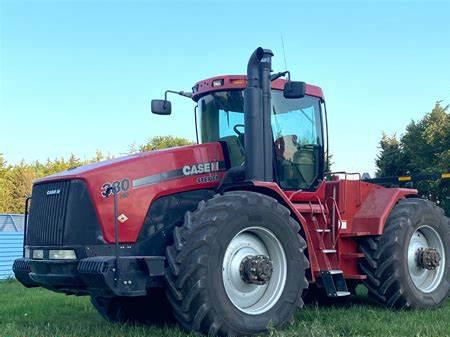

CaseIH Steiger 380 Tractors
 |
|
Power: 380 hp
Date of manufacture : 2007 - 2008 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| CaseIH Steiger 380 Power |
| Engine: | 380 hp
283.4 kW
|
| PTO (claimed): | 335 hp
249.8 kW
|
| Drawbar (tested): | 319.41 hp
238.2 kW
|
| PTO (tested): | 390.87 hp
291.5 kW
|
| CaseIH Steiger 380 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| Steering: | articulated power
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning, optional Luxury cab
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | CaseIH Steiger 380 photos... |
| Hydraulics |
| Type: | PFC
|
| Pump flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm *Optional high capacity pump.
|
| | 90 gpm
340.7 lpm *Optional TwinFlow
|
| Tractor hitch |
| Rear Type: | IVN
|
| Rear lift (at 24"/610mm): | 19620 lbs
8899 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent*Optional
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 37900 to 41605 pounds
|
| Full dimensions and tires ... | |
