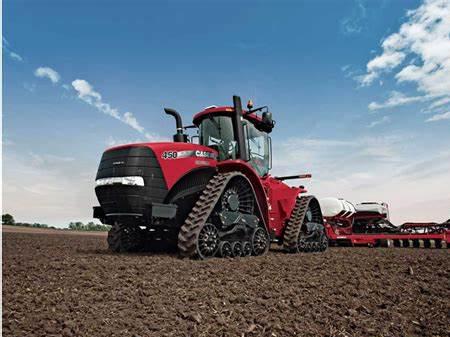

CaseIH Steiger 450 Rowtrac Tractors
 |
|
Power: 450 hp
Date of manufacture : 2013 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $416,114 (2013 )
|
| CaseIH Steiger 450 Rowtrac Power |
| Engine: | 450 hp
335.6 kW
|
| PTO (claimed): | 385 hp
287.1 kW
|
| Drawbar (tested): | 352.92 hp
263.2 kW
|
| PTO (tested): | 453.89 hp
338.5 kW
|
| CaseIH Steiger 450 Rowtrac Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Final drives: | inboard planetary
|
| Brakes: | wet disc
|
| Cab: | Surveyor Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | pressure flow compensated
|
| Rear valves: | 4 to 8
|
| | 5 (with 3-point)
|
| Pump flow: | 42 gpm
159.0 lpm
|
| | 57 gpm
215.7 lpm (optional)
|
| | 113 gpm
427.7 lpm (optional)
|
| SCV flow: | 35 gpm
132.5 lpm
|
| Tractor hitch |
| Rear Type: | IVNl IIIN (optional)
|
| Control: | lower link draft sensing
|
| Rear lift (at 24"/610mm): | 20000 lbs
9072 kg
|
| Rear Arms: | fixed
|
| Drawbar: | Category 4, Swinging
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.375)
|
| Dimensions & Tracks |
| Wheelbase: | 160 inches
406 cm
|
| Weight: | 51000 to 55785 pounds
|
| 16-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery volts: | 12
|
|
