Navigation: Home > CaseIH > Steiger 470 Rowtrac

CaseIH Steiger 470 Rowtrac Tractors

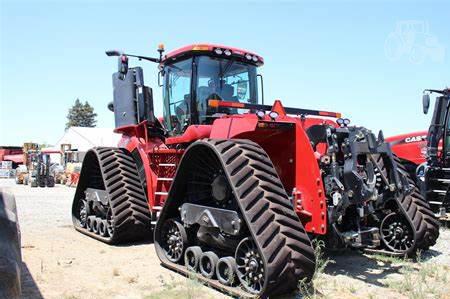

CaseIH Steiger 470 Rowtrac
Power: 470 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:CaseIH
Type:Articulated Crawler tractor
Factory:Fargo, North Dakota, USA
Original price:$459,349 (2015 )
Variants
470:wheeled tractor
470RT:row-crop crawler
470QT:crawler
CaseIH Steiger 470 Rowtrac Power
Engine:470 hp
350.5 kW
PTO (claimed):405 hp
302.0 kW
CaseIH Steiger 470 Rowtrac Engine
Mechanical
Chassis:articulated crawler
Final drives:planetary
Steering:hydraulic articulated
Brakes:hydraulic wet disc
 engine brake*Optional.
Trailer brakes:hydraulic*Optional.
Cab:Surveyor Cab standard with air-conditioning.
Transmission:16-speed full power shift
Hydraulics
Type:pressure flow compensated
Valves:4 to 8
Pump flow:42 gpm
159.0 lpm
 57 gpm
215.7 lpm *High Flow option
 113 gpm
427.7 lpm *TwinFlow option
SCV flow:35 gpm
132.5 lpm
Tractor hitch
Rear Type:IVN
 III*Optional.
Rear lift (at 24"/610mm):20000 lbs
9072 kg
Rear Arms:quick coupler
Drawbar:Cat. 4
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000*1.75 inch shaft
Dimensions & Tracks
Wheelbase:160 inches
406 cm
Weight:43510 lbs
19736 kg
16-inch track
Full dimensions and tracks ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery CCA:1000
Battery volts:12
