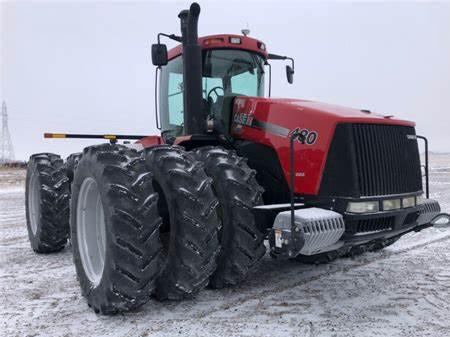

CaseIH Steiger 480 Tractors

CaseIH Steiger 480
Power: 480 hp
Date of manufacture :
2007 - 2008
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
CaseIH Steiger 480 Power
Engine:480 hp
357.9 kW
PTO (claimed):425 hp
316.9 kW
Drawbar (tested):391.15 hp
291.7 kW
PTO (tested):483.15 hp
360.3 kW
CaseIH Steiger 480 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:inboard planetary
Steering:articulated power
Brakes:integrated hydraulic wet disc
Cab:Cab standard with heat and air-conditioning, optional Luxury cab
Transmission:16-speed full power shift
Hydraulics
Type:PFC
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm *Optional high capacity pump.
 90 gpm
340.7 lpm *Optional TwinFlow
Tractor hitch
Rear Type:IVN
Rear lift (at 24"/610mm):19620 lbs
8899 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:44645 lbs
20250 kg
Front tire:520/85R42
Rear tire:520/85R42
Full dimensions and tires ...
