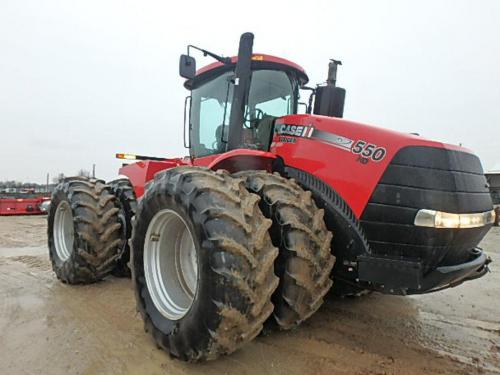

CaseIH Steiger 550 Tractors
 |
|
Power: 550 hp
Date of manufacture : 2011 - 2013 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Variants |
| 550: | wheeled tractor
|
| 550QT: | crawler tractor
|
| CaseIH Steiger 550 Power |
| Engine: | 550 hp
410.1 kW
|
| PTO (claimed): | 475 hp
354.2 kW
|
| Drawbar (tested): | 462.64 hp
345.0 kW
|
| PTO (tested): | 536.32 hp
399.9 kW
|
| CaseIH Steiger 550 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Cab: | Surveyor cab standard.
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | CaseIH Steiger 550 photos... |
| Hydraulics |
| Type: | pressure flow compensating (PFC)
|
| Rear valves: | 4 to 8
|
| Pump flow: | 35 gpm
132.5 lpm
|
| Total flow: | 42 gpm
159.0 lpm
|
| | 56 gpm
212.0 lpm (High Flow)
|
| | 113 gpm
427.7 lpm (Twin Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift: | 19,620 lbs
8899 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| Dimensions & Tires |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 44,046 lbs
19979 kg
|
| Full dimensions and tires ... |
| Steiger 550 Serial Numbers |
| Location: | Serial number plate on the front left tractor fender, near the steps.
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
