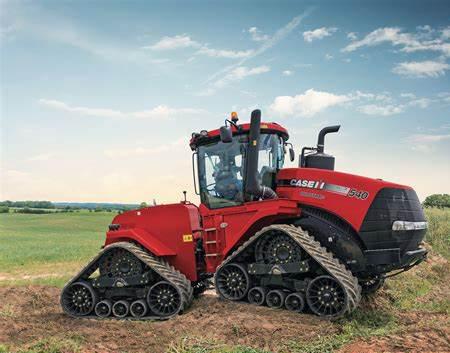

CaseIH Steiger 540 Quadtrac Tractors
 |
|
Power: 535 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Articulated Crawler tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $514,789 (2015 )
|
| Variants |
| 540: | wheeled tractor
|
| 540QT: | crawler tractor
|
| CaseIH Steiger 540 Quadtrac Power |
| Engine: | 535 hp
398.9 kW
|
| PTO (claimed): | 473 hp
352.7 kW
|
| CaseIH Steiger 540 Quadtrac Engine |
| Mechanical |
| Chassis: | articulated crawler
|
| Final drives: | planetary
|
| Steering: | hydraulic articulated
|
| Brakes: | hydraulic wet disc
|
| | engine brake*Optional.
|
| Trailer brakes: | hydraulic*Optional.
|
| Cab: | Surveyor Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Photos |
| | CaseIH Steiger 540 Quadtrac photos... |
| Hydraulics |
| Type: | pressure flow compensated
|
| Valves: | 4 to 8
|
| Pump flow: | 42 gpm
159.0 lpm
|
| | 57 gpm
215.7 lpm *High Flow option
|
| | 113 gpm
427.7 lpm *TwinFlow option
|
| SCV flow: | 35 gpm
132.5 lpm
|
| Tractor hitch |
| Rear Type: | IVN
|
| Rear lift (at 24"/610mm): | 19728 lbs
8948 kg
|
| Rear Arms: | quick coupler
|
| Drawbar: | Cat. 4
|
| | Cat. 5*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000*1.75 inch shaft
|
| Dimensions & Tracks |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 47780 lbs
21673 kg
|
| 30-inch track |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 240
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
