CaseIH Steiger 535 Tractors
 |
|
Power: 535 hp
Date of manufacture : 2008 - 2010 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $318,437 (2010)
|
| Variants |

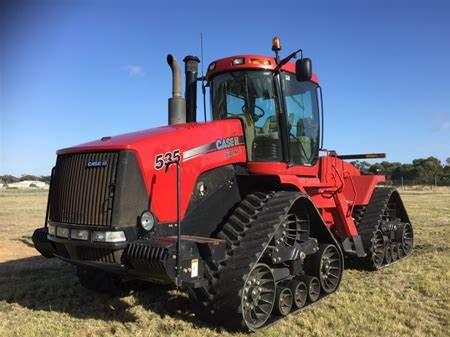

| 535 Quadtrac: | articulated crawler
|
| CaseIH Steiger 535 Power |
| Engine: | 535 hp
398.9 kW
|
| PTO (claimed): | 473 hp
352.7 kW
|
| CaseIH Steiger 535 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with heat and A/C, optional Luxury cab
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | parallel pressure flow compensated (PFC)
|
| Valves: | 4 to 5
|
| | 4 to 9 (without 3-point hitch)
|
| Total flow: | 42 gpm
159.0 lpm
|
| | 57 gpm
215.7 lpm (High-Flow)
|
| | 94 gpm
355.8 lpm (Twin-Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift (at 24"/610mm): | 19,620 lbs
8899 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent optional
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 154 inches
391 cm
|
| Weight: | 42,639 lbs
19341 kg
|
| Front tire: | 800/70R38
|
| Rear tire: | 800/70R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
