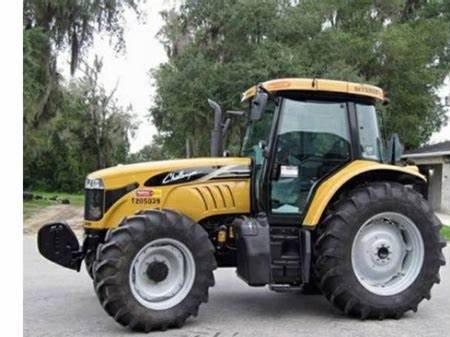

Challenger MT525B Tractors
 |
|
Power: 118 hp
Date of manufacture : 2004 - 2011 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with heat and A/C. Optional pneumatic cab suspension and automatic climate control.
|
| Transmissions: | 32-speed partial power shift
|
| | 24-speed partial power shift
|
| | continuously variable transmission
|
| Capacity |
| Fuel: | 71 gal
268.7 L
|
| AutoPower Hydraulic system: | 18.5 gal
70.0 L
|
| CVT Hydraulic system: | 26.4 gal
99.9 L
|
| Hydraulics |
| Type: | closed center pressure flow compensating (PFC)
|
| AutoPower Capacity: | 18.5 gal
70.0 L
|
| CVT Capacity: | 26.4 gal
99.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 2 to 4
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | II/III
|
| AP Rear lift (at 24"/610mm): | 8500 lbs
3855 kg
|
| CVT Rear lift (at 24"/610mm): | 11200 lbs
5080 kg
|
| Front Hitch: | optional
|
| Front lift: | 5,500 lbs
2494 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| | 540/540E/1000*Optional
|
| Engine RPM: | 540@1980
540E@1533
1000@2000
1000E@1548
|
| Dimensions & Tires |
| 2WD Wheelbase: | 112.1 inches
284 cm
|
| 4WD Wheelbase: | 109.5 inches
278 cm
|
| Weight: | 11052 to 14835 pounds
|
| Front tire: | 14L-16.1
|
| Rear tire: | 18.4R38
|
| Full dimensions and tires ... |
| MT525B Serial Numbers |
| 2004: | N00001
|
| 2005: | P00001
|
| 2006: | R00001
|
| 2007: | S00001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Batteries: | 2
|
| Battery CCA: | 420
|
| Battery volts: | 12
|
|
