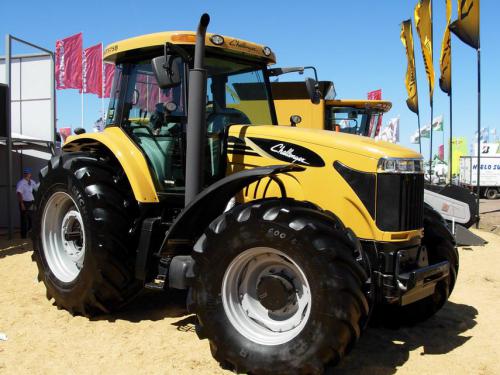

Challenger MT575B Tractors
 |
|
Power: 185 hp
Date of manufacture : 2007 - 2011 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Original price: | $118,810 (2009 AutoPower 2WD )
|
| Original price: | $132,069 (2009 AutoPower 4WD )
|
| Original price: | $141,792 (2009 CVT 4WD )
|
| Variants |
| Massey Ferguson 7495 | | Massey Ferguson 6495 |
| Challenger MT575B Power |
| Engine (gross): | 185 hp
138.0 kW
|
| PTO (claimed): | 160 hp
119.3 kW
|
| Drawbar (tested): | 109.7 hp
81.8 kW
|
| PTO (tested): | 193.8 hp
144.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with heat and air-conditioning. Optional pneumatic cab suspension and automatic temperature control.
|
| Transmissions: | 24-speed partial power shift
|
| | continuously variable transmission
|
| Capacity |
| Fuel: | 98 gal
370.9 L
|
| AP6 Hydraulic system: | 18.5 gal
70.0 L
|
| CVT Hydraulic system: | 26.4 gal
99.9 L
|
| Hydraulics |
| Type: | pressure flow compensated (PFC)
|
| AP6 Capacity: | 18.5 gal
70.0 L
|
| CVT Capacity: | 26.4 gal
99.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 5
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm *Optional with CVT transmission.
|
| Tractor hitch |
| Rear Type: | 2/3
|
| Rear lift (at 24"/610mm): | 15,240 lbs
6912 kg
|
| | 14,283 lbs
6478 kg (CVT)
|
| Front Hitch: | optional
|
| Front lift (at ends): | 8,800 lbs
3991 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/540E/1000 (1.375)
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 113.8 inches
289 cm
|
| Weight: | 15000 to 17595 pounds
|
| Front tire: | 11.00-16
|
| 2WD Rear tire: | 18.4R42
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| Batteries: | 2
|
| Battery CCA: | 420
|
| Battery volts: | 12
|
|
