Challenger MT565D Tractors

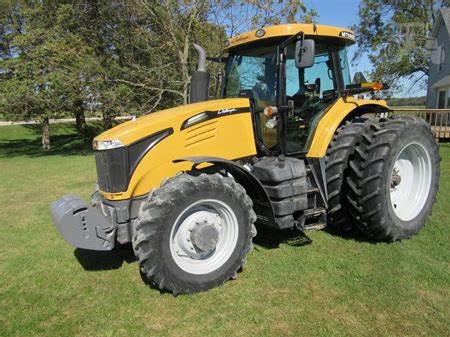

Challenger MT565D
Power: 180 hp
Date of manufacture :
2012 - 2014
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factories:Beauvais, France
 Jackson, Minnesota, USA
Original price:$152,122 (2013 classic )
Original price:$176,842 (2013 deluxe )
Original price:$187,152 (2013 deluxe )
Challenger MT565D Power
Engine:180 hp
134.2 kW
PTO (claimed):150 hp
111.9 kW
Drawbar (tested):137.2 hp
102.3 kW
PTO (tested):183.2 hp
136.6 kW
Challenger MT565D Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic full locking
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic (optional)
 pneumatic (optional)
Cab:Cab standard with air-conditioning. AGCO System 150 (optional)
 AGCOMMAND (optional)
Transmissions:24-speed six-speed power shift
 continuously variable transmission
Capacity
Fuel:114 gal
431.5 L
Exhaust fluid (DEF):11 gal
41.6 L
Hydraulic system:26.4 gal
99.9 L
Hydraulics
Type:closed center load sensing (CCLS)
Capacity:26.4 gal
99.9 L
Pressure:2900 psi
200.0 bar
Valves:2 to 4
SCV flow:24.3 gpm
92.0 lpm
Total flow:29 gpm
109.8 lpm
 39 gpm
147.6 lpm (optional)
Tractor hitch
Rear Type:III
Control:electronic lower link draft control
Rear lift (at 24"/610mm):12500 lbs
5670 kg (AutoPower)
 11650 lbs
5284 kg (CVT)
Drawbar:Cat. 2
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/1000
 540/540E/1000
 540E/1000E/1000
Dimensions & Tires
Wheelbase:117.8 inches
299 cm
Weight:17000 lbs
7711 kg
Front tire:420/85R28
Rear tire:480/80R42
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:175
 240*Total capacity with dual 120A alternator option.
Batteries:2
Battery CCA:600
Battery volts:12
