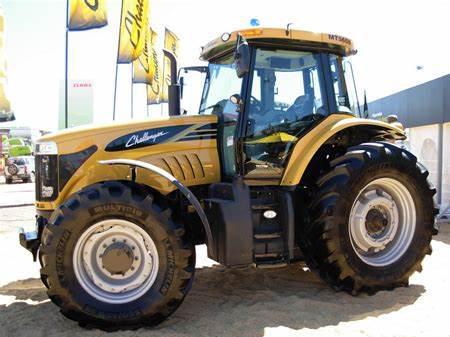

Challenger MT565 Tractors
|
|
Power: 161 hp[P]
Date of manufacture : 2002 - 2003 |
Production |
Manufacturer: | Challenger (a part of AGCO)
|
Type: | Row-Crop tractor
|
Factory: | Beauvais, France
|
Variants |
Massey Ferguson 8240 |
Challenger MT565 Power |
PTO (claimed): | 145 hp 108.1 kW
|
Drawbar (tested): | 141.1 hp 105.2 kW
|
PTO (tested): | 155.2 hp 115.7 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | hydraulic wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmissions: | 18-speed full power shift
|
| 32-speed partial power shift
|
Hydraulics |
Type: | closed center pressure flow compensated (PFC)
|
Pressure: | 2900 psi 200.0 bar
|
Valves: | 4
|
Total flow: | 29 gpm 109.8 lpm
|
| 39 gpm 147.6 lpm *Optional, with power shift transmission.
|
Tractor hitch |
Rear Type: | III
|
Rear lift (at 24"/610mm): | 14500 lbs 6577 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 111.2 inches 282 cm
|
Weight: | 15555 to 16465 pounds
|
Front tire: | 14L-16
|
Rear tire: | 20.8R42
|
Full dimensions and tires ... |
Electrical |
Ground: | negative
|
Charging system: | alternator
|
|
