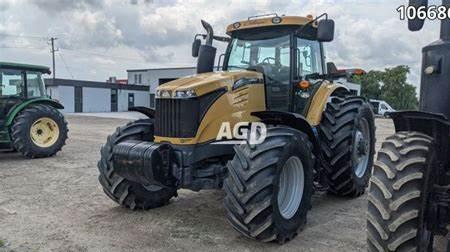

Challenger MT595D Tractors
 |
|
Power: 240 hp
Date of manufacture : 2012 - 2014 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factories: | Beauvais, France
|
| | Jackson, Minnesota, USA
|
| Original price: | $179,147 (2013 classic )
|
| Original price: | $203,867 (2013 deluxe )
|
| Original price: | $214,177 (2013 deluxe )
|
| Challenger MT595D Power |
| Engine: | 240 hp
179.0 kW
|
| PTO (claimed): | 195 hp
145.4 kW
|
| Drawbar (tested): | 177.8 hp
132.6 kW
|
| PTO (tested): | 233.9 hp
174.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. AGCO System 150 (optional)
|
| | AGCOMMAND (optional)
|
| Transmission: | 24-speed six-speed power shift
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 2 to 4
|
| SCV flow: | 24.3 gpm
92.0 lpm
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | electronic lower link draft control
|
| Drawbar: | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Dimensions & Tires |
| Front tire: | 420/90R30
|
| Rear tire: | 480/80R46
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| | 240*Total capacity with dual 120A alternator option.
|
| Batteries: | 2
|
| Battery CCA: | 600
|
| Battery volts: | 12
|
|
