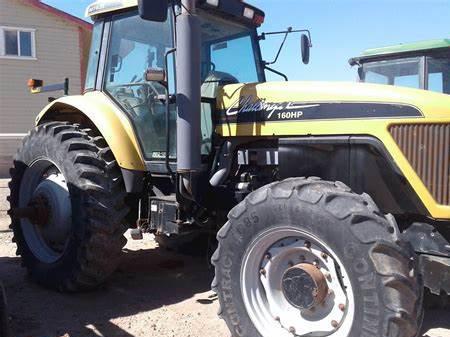

Challenger MT635 Tractors
 |
|
Power: 177 hp[P]
Date of manufacture : 2002 - 2003 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 18-speed power shift
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift (at 24"/610mm): | 16100 lbs
7302 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1991
1000@2091
|
| Dimensions & Tires |
| Wheelbase: | 121 inches
307 cm
|
| Weight: | 18900 lbs
8573 kg
|
| Front tire: | 14.9R30
|
| Rear tire: | 18.4R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
