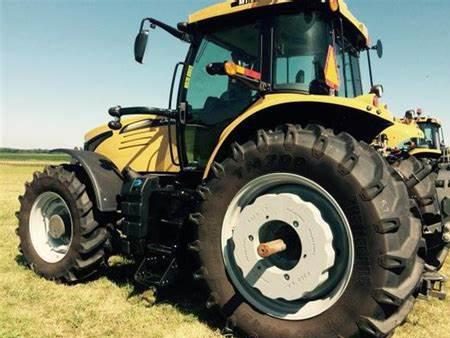

Challenger MT595E Tractors
 |
|
Power: 240 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Challenger MT595E Power |
| Engine (gross): | 240 hp
179.0 kW
|
| Engine (max): | 280 hp
208.8 kW
|
| PTO (claimed): | 200 hp
149.1 kW
|
| Drawbar (tested): | 169.6 hp
126.5 kW
|
| PTO (tested): | 235.9 hp
175.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Auto-Guide 3000
|
| Transmissions: | 24-speed six-speed power shift
|
| | continuously-variable transmission (CVT)
|
| Capacity |
| Fuel: | 114 gal
431.5 L
|
| Exhaust fluid (DEF): | 11 gal
41.6 L
|
| Hydraulic system: | 26.4 gal
99.9 L
|
| Hydraulics |
| Type: | closed-center load sensing
|
| Capacity: | 26.4 gal
99.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| SCV flow: | 26.4 gpm
99.9 lpm
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm *Optional with AutoPower VI
|
| | 50 gpm
189.3 lpm *Optional with CVT
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Rear lift (at ends): | 13500 lbs
6123 kg
|
| | 16700 lbs
7575 kg *Lift capacity with CVT transmission.
|
| Front Hitch: | IIIN*Optional
|
| Front lift (at ends): | 7954 lbs
3607 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000
|
| | 540E/1000E/1000*Optional
|
| | 540/540E/1000/1000E*With CVT transmission.
|
| Dimensions & Tires |
| Wheelbase: | 117 inches
297 cm
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
