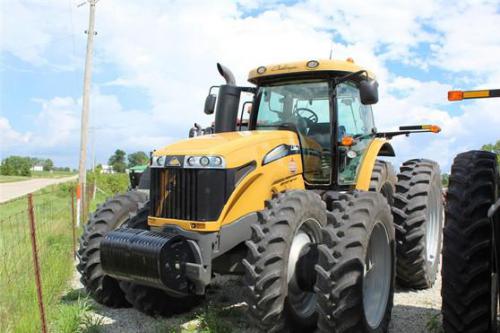

Challenger MT645D Tractors
 |
|
Power: 240 hp
Date of manufacture : 2011 - 2013 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Original price: | $263,455 (2013 )
|
| Challenger MT645D Power |
| Engine (gross): | 240 hp
179.0 kW
|
| PTO (claimed): | 205 hp
152.9 kW
|
| Drawbar (tested): | 170.7 hp
127.3 kW
|
| PTO (tested): | 250.8 hp
187.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | pneumatic (optional)
|
| | hydraulic (optional)
|
| Cab: | Cab standard with air-conditioning and OptiRide Plus hydraulic suspension AGCO System 150 (optional)
|
| | AGCOMMAND (optional)
|
| Transmission: | continuously variable transmission
|
| Capacity |
| Fuel: | 167 gal
632.1 L
|
| Exhaust fluid (DEF): | 16 gal
60.6 L
|
| Hydraulic system: | 29.1 gal
110.1 L
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| Capacity: | 29.1 gal
110.1 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| SCV flow: | 26.4 gpm
99.9 lpm
|
| Total flow: | 46 gpm
174.1 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 22760 lbs
10323 kg
|
| Front Hitch: | III (optional)
|
| Front lift (at ends): | 11000 lbs
4989 kg
|
| Drawbar: | Cat. 3
|
| | Cat. 3 Heavy-Duty (optional)
|
| | Cat. 4 (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 1000/1000E (1.75)
|
| | 540E/1000/1000E (optional)
|
| Engine RPM: | 540E@1577
1000E@1605
1000@1970
|
| Dimensions & Tires |
| Wheelbase: | 122 inches
309 cm
|
| Weight: | 24250 lbs
10999 kg
|
| Front tire: | 480/70R34
|
| Rear tire: | 520/85R46
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 240
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
