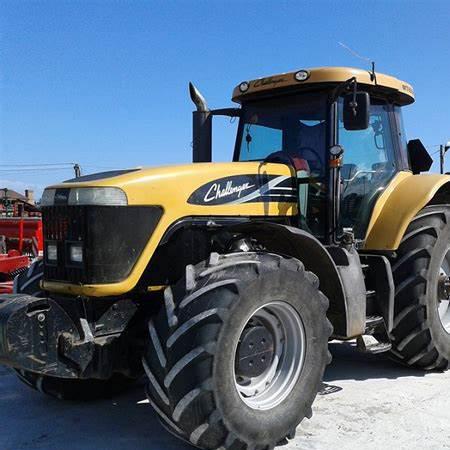

Challenger MT655B Tractors
 |
|
Power: 260 hp
Date of manufacture : 2005 - 2008 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Challenger MT655B Power |
| Engine: | 260 hp
193.9 kW
|
| PTO (claimed): | 220 hp
164.1 kW
|
| Drawbar (tested): | 215.6 hp
160.8 kW
|
| PTO (tested): | 252.4 hp
188.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electrohydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with heat and A/C. Optional pneumatic cab suspension and automatic climate control.
|
| Transmission: | continuously variable transmission (CVT)
|
| Capacity |
| Fuel: | 159 gal
601.8 L
|
| Hydraulic system: | 26.4 gal
99.9 L
|
| Hydraulics |
| Type: | pressure flow compensated (PFC)
|
| Capacity: | 26.4 gal
99.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Total flow: | 39 gpm
147.6 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift (at 24"/610mm): | 15,600 lbs
7076 kg
|
| Front Hitch: | II*Optional
|
| Front lift: | 7,700 lbs
3492 kg
|
| | 12,100 lbs
5488 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540 (1.375)
|
| | 540/540E*Optional
|
| | 1000 (1.375)
|
| | 1000 (1.75)
|
| Engine RPM: | 540@2037
540E@ 1598
1000@2031
|
| Dimensions & Tires |
| Wheelbase: | 121.1 inches
307 cm
|
| Weight: | 19550 to 20290 pounds
|
| Front tire: | 380/85R34
|
| Rear tire: | 480/80R46
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| Batteries: | 2
|
| Battery CCA: | 775
|
| Battery volts: | 12
|
|
