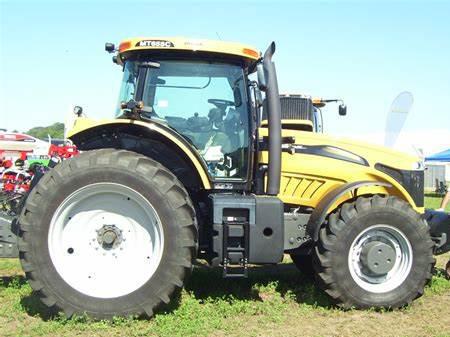

Challenger MT655C Tractors
 |
|
Power: 265 hp
Date of manufacture : 2009 - 2010 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factory: | Beauvais, France
|
| Original price: | $216,780 (2009 )
|
| Variants |
| Massey Ferguson 8660 |
| Challenger MT655C Power |
| Engine (gross): | 265 hp
197.6 kW
|
| PTO (claimed): | 225 hp
167.8 kW
|
| Drawbar (tested): | 195.1 hp
145.5 kW
|
| PTO (tested): | 269.4 hp
200.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.
|
| Transmission: | continuously variable transmission
|
| Photos |
| | Challenger MT655C photos... |
| Hydraulics |
| Type: | closed center load sensing
|
| Pressure: | 2,901 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 26.4 gpm
99.9 lpm
|
| Total flow: | 46.2 gpm
174.9 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | electronic lower-link draft sensing
|
| Rear lift (at ends): | 26,460 lbs
12002 kg
|
| Rear lift (at 24"/610mm): | 21,336 lbs
9678 kg
|
| Front lift (at ends): | 11,020 lbs
4998 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 1000E/1000 (1.75)
|
| | 540E/1000 (1.375)*Optional
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 122.2 inches
310 cm
|
| Weight: | 24250 to 25795 pounds
|
| Front tire: | 480/70R34
|
| Rear tire: | 520/85R46
|
| MT655C Serial Numbers |
| Location: | Serial number plate below the tractor cab door on the right side.
|
photo of MT655C serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 240*Two 120A alternators.
|
| Batteries: | 2
|
| Battery CCA: | 775
|
| Battery volts: | 12
|
|
