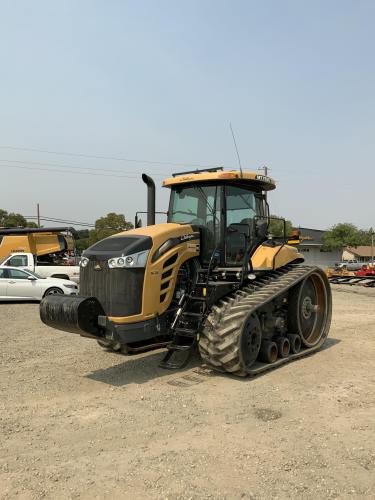

Challenger MT755E Tractors
 |
|
Power: 350 hp
Date of manufacture : 2014 - 2017 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Challenger MT755E Power |
| Engine (gross): | 350 hp
261.0 kW
|
| Drawbar (tested): | 252.35 hp
188.2 kW
|
| PTO (tested): | 326.14 hp
243.2 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | electro-hydraulic differential
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | closed-center pressure-flow compensated (PFC)
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Pump flow: | 58.1 gpm
219.9 lpm
|
| | 85 gpm
321.7 lpm (optional)
|
| SCV flow: | 26.4 gpm
99.9 lpm
|
| | 36 gpm
136.3 lpm (optional)
|
| Tractor hitch |
| Rear Type: | IVN/III
|
| Rear lift: | 16000 lbs
7257 kg
|
| Drawbar: | Cat. 4 standard
|
| | Cat. 3 optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tracks |
| Weight: | 30131 lbs
13667 kg
|
| 14-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 300 (2x 150amp)
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
