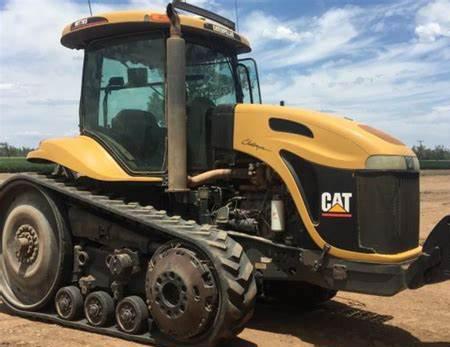

Challenger MT765 Tractors
 |
|
Power: 306 hp
Date of manufacture : 2002 - 2004 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Challenger MT765 Power |
| Engine (gross): | 306 hp
228.2 kW
|
| Drawbar (claimed): | 245 hp
182.7 kW
|
| PTO (claimed): | 255 hp
190.2 kW
|
| Drawbar (tested): | 258.6 hp
192.8 kW
|
| PTO (tested): | 298.77 hp
222.8 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | electro-hydraulic
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed full power shift
|
| | 30-speed creeper
|
| Hydraulics |
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 16000 lbs
7257 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tracks |
| Wheelbase: | 96 inches
243 cm
|
| Weight: | 29,520 lbs
13390 kg
|
| tracks |
| Full dimensions and tracks ... |
| MT765 Serial Numbers |
| Location: | On main tractor frame, front left side.
|
| 2002: | AMS20000
|
| 2003: | AMS30000
|
| 2004: | AMS40000
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 160
|
| Battery volts: | 12
|
|
