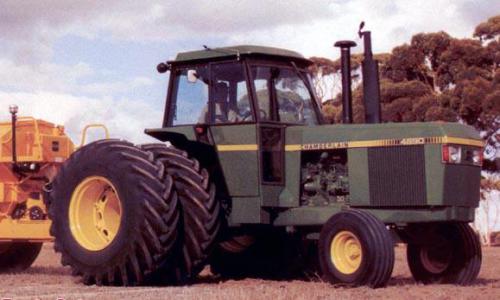

Chamberlain 4690 Tractors
 |
|
Power: 163 hp
Date of manufacture : 1985 - 1986 |
| Production |
| Manufacturer: | Chamberlain (a part of John Deere)
|
| Type: | Row-Crop tractor
|
| Factory: | Welshpool, Australia
|
| Total built: | 180
|
| Chamberlain 4690 Power |
| Engine (net): | 163.5 hp
121.9 kW
|
| PTO (claimed): | 154 hp
114.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 12-speed partial power shift
|
| Capacity |
| Fuel: | 87.2 gal
330.1 L
|
| Hydraulic system: | 7.2 gal
27.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.2 gal
27.3 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 4 (max)
|
| | 3 (with 3pt)
|
| Total flow: | 15.6 gpm
59.0 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Control: | top-link sensing
|
| Rear lift (at 24"/610mm): | 7,681 lbs
3484 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic disc
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| 2WD fixed Wheelbase: | 113.5 inches
288 cm
|
| 2WD Wheelbase: | 114.3 inches
290 cm
|
| 4WD Wheelbase: | 115 inches
292 cm
|
| Weight: | 13779 to 14639 pounds
|
| Front tire: | 11.00x16
|
| Rear tire: | 24.5x32 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 70
|
| Batteries: | 2
|
| Battery volts: | 6
|
|
