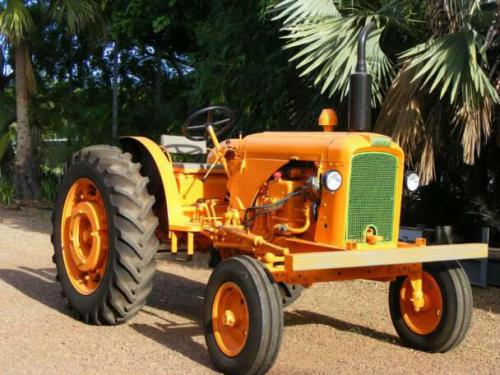

Chamberlain Canelander Tractors

Chamberlain Canelander
Power: 62 hp
Date of manufacture :
1959 - 1973
Production
Manufacturer:Chamberlain
Type:High-Clearance tractor
Factory:Welshpool, Australia
Chamberlain Canelander Power
Engine:62 hp
46.2 kW
Drawbar (claimed):48 hp
35.8 kW
PTO (claimed):55 hp
41.0 kW
Chamberlain Canelander Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical expanding
Cab:Open operator station.
Transmissions:9-speed gear
 9-speed
Capacity
Fuel:19.5 gal
73.8 L
Hydraulic system:2.4 gal
9.1 L
Hydraulics
Type:open center
Capacity:2.4 gal
9.1 L
Pressure:1750 psi
120.7 bar
Pump flow:9.8 gpm
37.1 lpm
Tractor hitch
Rear Type:II
Rear lift (at ends):3500 lbs
1587 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@1600
Dimensions & Tires
Wheelbase:92 inches
233 cm
Weight:7350 lbs
3333 kg
Front tire:7.50x18
Rear tire:14.9x38
Full dimensions and tires ...
