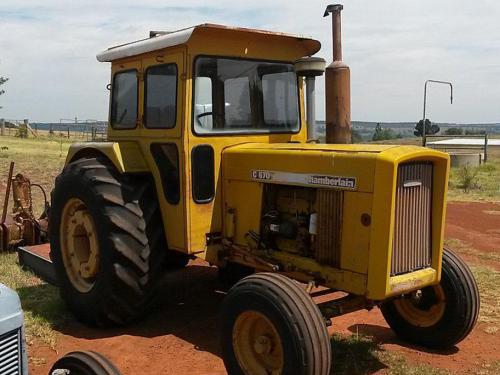

Chamberlain C670 Tractors
|
|
Power: 70 hp
Date of manufacture : 1970 - 1975 |
Production |
Manufacturer: | Chamberlain
|
Type: | Standard-tread tractor
|
Factory: | Welshpool, Australia
|
Variants |
C670D: | drawbar only
|
C670L: | three-point hitch
|
Chamberlain C670 Power |
Engine: | 70 hp 52.2 kW
|
Drawbar (claimed): | 57 hp 42.5 kW
|
PTO (claimed): | 68 hp 50.7 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
Cab: | Open operator station. Cab optional.
|
Transmission: | 9-speed gear
|
Photos |
| Chamberlain C670 photos... |
Capacity |
Hydraulic system: | 3 gal 11.4 L
|
Hydraulics |
Capacity: | 3 gal 11.4 L
|
Pressure: | 1900 psi 131.0 bar
|
Pump flow: | 14 gpm 53.0 lpm
|
Tractor hitch |
Rear Type: | II*Optional
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540 (1.375)
|
Engine RPM: | 540@1600
|
Dimensions & Tires |
Wheelbase: | 89.1 inches 226 cm
|
Weight: | 7800 lbs 3538 kg
|
Front tire: | 9.00x16
|
Rear tire: | 18.4x30
|
