Claas Xerion 3300 Tractors

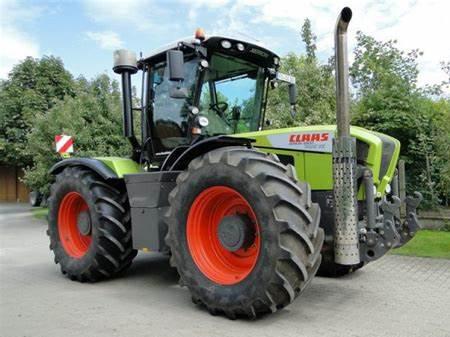

Claas Xerion 3300
Power: 335 hp
Date of manufacture :
2004 - 2012
Production
Manufacturer:Claas
Type:Four-wheel Drive (4WD) tractor
Variants
Trac:center cabin
Saddle Trac:front cab
Trac VC:pivoting cabin
Claas Xerion 3300 Power
Engine:335 hp
249.8 kW
Claas Xerion 3300 Engine
Mechanical
Chassis:4x4 4WD
Differential lock:electro-hydraulic
Steering:four-wheel steering
Brakes:integrated hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmission:continuously variable transmission
Photos
Claas Xerion 3300 photos...
Capacity
Fuel:163.8 gal
620.0 L
Hydraulic system:34.34 gal
130.0 L
Hydraulics
Type:load sensing
Capacity:34.34 gal
130.0 L
Pressure:2901 psi
200.0 bar
 3771 psi
260.0 bar (optional circuit)
Valves:5
Pump flow:29.1 gpm
110.1 lpm
 62.1 gpm
235.0 lpm (optional circuit)
Total flow:50.19 gpm
190.0 lpm
Tractor hitch
Rear Type:IIIN
Rear lift:25,850 lbs
11725 kg
Front Hitch:IIIN
Front lift:15,740 lbs
7139 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:129.9 inches
329 cm
Weight:28,660 lbs
13000 kg
Front tire:540/80R38
Rear tire:540/80R38
Full dimensions and tires ...
