Claas Xerion 3800 Tractors
|
|
Power: 379 hp
Date of manufacture : 2007 - 2013 |
Production |
Manufacturer: | Claas
|
Type: | Four-wheel Drive (4WD) tractor
|
Claas Xerion 3800 Power |
Engine: | 379 hp 282.6 kW
|
Mechanical |
Chassis: | 4x4 4WD
|
Differential lock: | electro-hydraulic
|
Steering: | four-wheel steering
|
Brakes: | integrated hydraulic wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmission: | continuously variable transmission
|
Photos |

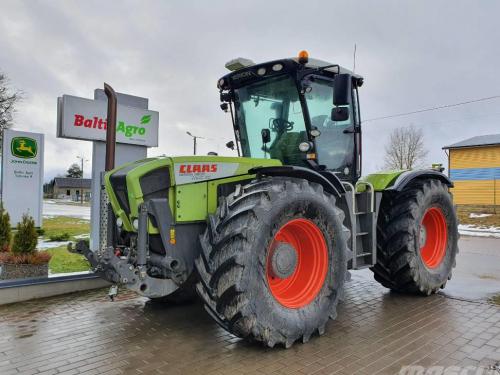

| Claas Xerion 3800 photos... |
Capacity |
Fuel: | 163.8 gal 620.0 L
|
Hydraulic system: | 34.34 gal 130.0 L
|
Hydraulics |
Type: | load sensing
|
Capacity: | 34.34 gal 130.0 L
|
Pressure: | 2901 psi 200.0 bar
|
| 3771 psi 260.0 bar (optional circuit)
|
Valves: | 5
|
Pump flow: | 29.1 gpm 110.1 lpm
|
| 62.1 gpm 235.0 lpm (optional circuit)
|
Total flow: | 50.19 gpm 190.0 lpm
|
Tractor hitch |
Rear Type: | IIIN
|
Rear lift: | 25,850 lbs 11725 kg
|
Front Hitch: | IIIN
|
Front lift: | 15,740 lbs 7139 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 1000
|
Dimensions & Tires |
Wheelbase: | 129.9 inches 329 cm
|
Weight: | 28,660 lbs 13000 kg
|
Front tire: | 540/80R38
|
Rear tire: | 540/80R38
|
Full dimensions and tires ... | |
