Navigation: Home > Claas > Xerion 4200

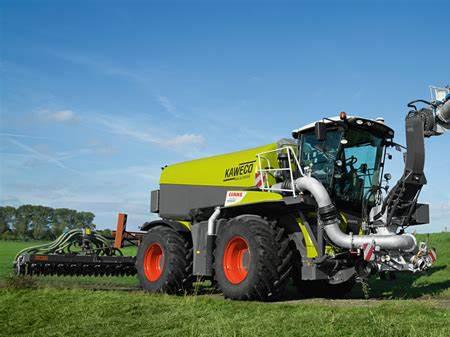

Claas Xerion 4200 Tractors
|
|
Power: 458 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | Claas
|
Type: | Four-wheel Drive (4WD) tractor
|
Variants |
TRAC: | wheeled
|
TRAC TS: | quad-tracked
|
TRAC VC: | rotating cab
|
SADDLE TRAC: | forward cab
|
Claas Xerion 4200 Power |
Engine (gross): | 458 hp 341.5 kW
|
Engine (max): | 462 hp 344.5 kW
|
Mechanical |
Chassis: | 4x4 4WD
|
Differential lock: | electro-hydraulic front and rear
|
Steering: | power four-wheel
|
Cab: | Cab standard with air-conditioning.
|
Transmission: | continuously-variable transmission
|
Capacity |
Fuel: | 195.5 gal 740.0 L
|
Exhaust fluid (DEF): | 23.3 gal 88.2 L
|
Hydraulic system: | 31.7 gal 120.0 L
|
Hydraulics |
Type: | load sensing
|
Capacity: | 31.7 gal 120.0 L
|
Pressure: | 2900 psi 200.0 bar
|
Rear valves: | up to 7
|
Front valves: | up to 3
|
Pump flow: | 51.5 gpm 194.9 lpm
|
| 66 gpm 249.8 lpm *Optional independent third-circuit pump.
|
SCV flow: | 27.7 gpm 104.8 lpm
|
Tractor hitch |
Rear Type: | IVN
|
Control: | position and draft control
|
Rear lift: | 22481 lbs 10197 kg
|
Front Hitch: | IIIN
|
Front lift: | 17857 lbs 8099 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 1000 (1.75)
|
| 1000 (2.25)
|
Dimensions & Tires |
Wheelbase: | 141.7 inches 359 cm
|
Weight: | 35274 lbs 16000 kg
|
Front tire: | 650/85R38
|
Rear tire: | 650/85R38
|
Full dimensions and tires ... | |
