Navigation: Home > Claas > Xerion 5000

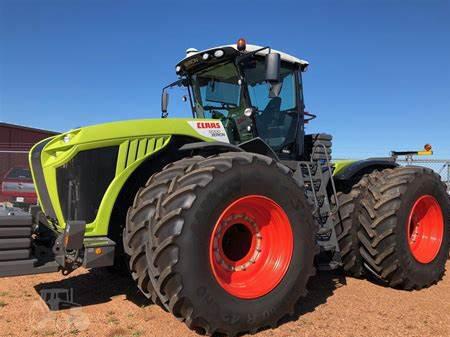

Claas Xerion 5000 Tractors
 |
|
Power: 487 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Claas
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Claas Xerion 5000 Power |
| Engine (gross): | 487 hp
363.2 kW
|
| Engine (max): | 524 hp
390.7 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | four-wheel steering
|
| Brakes: | hydraulic wet discs
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission
|
| Capacity |
| Fuel: | 264.2 gal
1000.0 L
|
| Hydraulic system: | 31.7 gal
120.0 L
|
| Hydraulics |
| Capacity: | 31.7 gal
120.0 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 6
|
| Front valves: | 2
|
| SCV flow: | 27.74 gpm
105.0 lpm
|
| Total flow: | 54.16 gpm
205.0 lpm
|
| Tractor hitch |
| Rear Type: | 4N
|
| Control: | position and draft control
|
| Rear lift: | 30,570 lbs
13866 kg
|
| Front Hitch: | 3N
|
| Front lift: | 18,800 lbs
8527 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 1000 (optional)
|
| Dimensions & Tires |
| Wheelbase: | 137.8 inches
350 cm
|
| Weight: | 29,540 lbs
13399 kg
|
| Front tire: | 800/70
|
| Rear tire: | 800/70
|
| Full dimensions and tires ... | |
