Cub Cadet 7275 Tractors

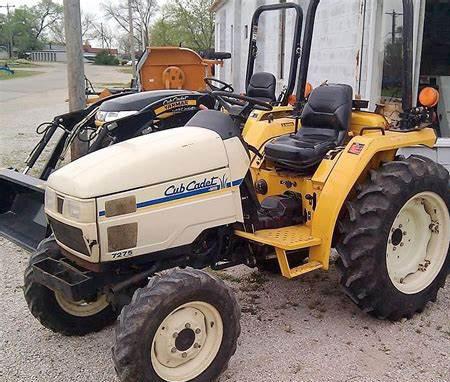

Cub Cadet 7275
Power: 27 hp
Date of manufacture :
1996 - 1997
Production
Distributor:Cub Cadet
Manufacturer:Mitsubishi
Type:Compact Utility tractor
Original price:$18,000 (1997 )
Variants
7272:2WD Gear
7273:2WD Hydrostatic
7274:4WD Gear
7275:4WD Hydrostatic
Cub Cadet 7275 Power
Engine:27 hp
20.1 kW
PTO (claimed):21 hp
15.7 kW
Cub Cadet 7275 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Canopy optional.
Transmission:hydrostatic
Hydraulics
Type:open center
Pressure:2133 psi
147.1 bar
Pump flow:7.2 gpm
27.3 lpm
Steering flow:3.2 gpm
12.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):2205 lbs
1000 kg
Rear lift (at 24"/610mm):1653 lbs
749 kg
Power Take-off (PTO)
Rear PTO:live independent
Rear RPM:540 (1.375)
Engine RPM:540@2356
Mid PTO:live independent
Mid RPM:2000 (1.0)
Engine RPM:2000@2421
Dimensions & Tires
Wheelbase:67 inches
170 cm
Weight:2685 lbs
1217 kg
Front tire:7.2-16
Rear tire:12.4-24
Electrical
Ground:negative
Battery volts:12
