Cub Cadet 7304 Tractors

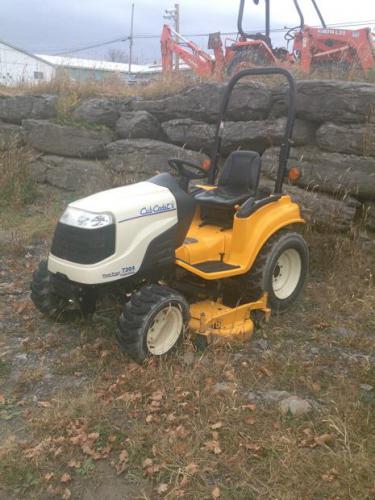

Cub Cadet 7304
Power: 30 hp
Date of manufacture :
2003 - 2004
Production
Manufacturer:Cub Cadet
Type:Compact Utility tractor
Original price:$13,200 (2004)
Cub Cadet 7304 Power
Engine:30 hp
22.4 kW
PTO (claimed):21 hp
15.7 kW
Cub Cadet 7304 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:dry shoe
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Capacity
Fuel:6 gal
22.7 L
Hydraulic system:6.5 gal
24.6 L
Hydraulics
Type:open center gear pump
Capacity:6.5 gal
24.6 L
Pressure:1500 psi
103.4 bar
Pump flow:5 gpm
18.9 lpm
Total flow:8 gpm
30.3 lpm
Steering flow:3 gpm
11.4 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1150 lbs
521 kg
Rear lift (at 24"/610mm):950 lbs
430 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electric
Rear RPM:540 (1.375)
Engine RPM:540@3500
Mid PTO:independent
Clutch:electric
Mid RPM:2000 (1.000)
Dimensions & Tires
Wheelbase:58 inches
147 cm
Weight:1730 lbs
784 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:30
Battery CCA:500
Battery volts:12
