| Production |
| Manufacturer: | Cub Cadet
|
| Type: | Compact Utility tractor
|
| Original price: | $17,700 (2003 )
|
| Variants |
| 7300: | gear drive
|
| 7305: | hydrostatic
|
| Cub Cadet 7305 Power |
| Engine (gross): | 30 hp
22.4 kW
|
| Engine (net): | 27 hp
20.1 kW
|
| PTO (claimed): | 24 hp
17.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical differential lock
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmission: | hydrostatic
|
| Photos |

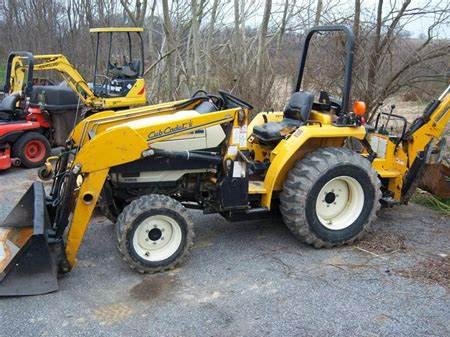

| | Cub Cadet 7305 photos... |
| Capacity |
| Fuel: | 7.9 gal
29.9 L
|
| Front axle: | 4.2 qts
4.0 L
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2133 psi
147.1 bar
|
| Valves: | 1 or 2
|
| Pump flow: | 7.9 gpm
29.9 lpm
|
| Total flow: | 11.5 gpm
43.5 lpm
|
| Steering flow: | 3.6 gpm
13.6 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position with optional draft control
|
| Rear lift (at 24"/610mm): | 1,653 lbs
749 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2376
|
| Mid PTO: | live*Optional
|
| Mid RPM: | 2000
|
| Engine RPM: | 2000@2632
|
| Dimensions & Tires |
| Wheelbase: | 67 inches
170 cm
|
| Weight: | 2465 to 2685 pounds
|
| Front tire: | 7.2-16
|
| Rear tire: | 12.4-24
|
| 7305 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, just behind the front axle.
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Charging volts: | 12
|
| Battery CCA: | 500
|
| Battery volts: | 12
|
|
