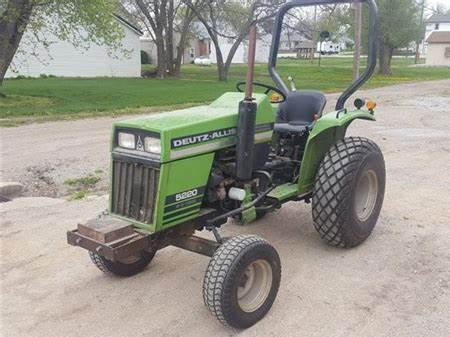

Deutz-Allis 5220 Tractors
 |
|
Power: 26 hp
Date of manufacture : 1986 - 1989 |
| Production |
| Distributor: | Deutz-Allis
|
| Manufacturer: | Hinomoto
|
| Type: | Compact Utility tractor
|
| Original price: | $10,000 (1989 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | manual
|
| Steering: | power*Optional
|
| Brakes: | differential wet disc
|
| Cab: | Two-post fixed ROPS with optional canopy. Cab optional.
|
| Transmission: | 12-speed synchromesh
|
| Capacity |
| Fuel: | 7.1 gal
26.9 L
|
| Hydraulic system: | 6.6 gal
25.0 L
|
| Steering: | 1 qts
0.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 6.6 gal
25.0 L
|
| Valves: | 0 to 2
|
| Pump flow: | 4.6 gpm
17.4 lpm
|
| Steering cap.: | 1 qts
0.9 L
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1958 lbs
888 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| 2WD Wheelbase: | 63 inches
160 cm
|
| 4WD Wheelbase: | 62.8 inches
159 cm
|
| Weight: | 2222 to 2398 pounds
|
| Front tire: | 5.00-15
|
| 2WD Rear tire: | 11.2-14
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
