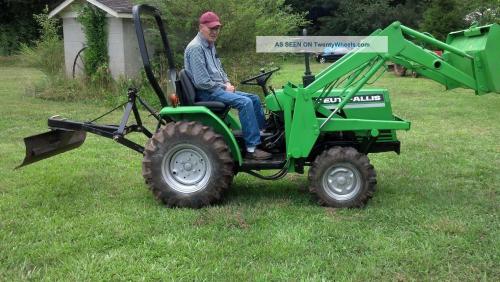

Deutz-Allis 5215 Tractors
 |
|
Power: 18 hp
Date of manufacture : 1987 - 1989 |
| Production |
| Distributor: | Deutz-Allis
|
| Manufacturer: | Hinomoto
|
| Type: | Compact Utility tractor
|
| Original price: | $8,000 (1989 )
|
| Variants |
| 5215H: | hydrostatic transmission
|
| Deutz-Allis 5215 Power |
| Engine (gross): | 18 hp
13.4 kW
|
| PTO (claimed): | 15 hp
11.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | manual
|
| Steering: | power*Optional with four-wheel drive.
|
| Brakes: | differential mechanical drum
|
| Cab: | Two-post fixed ROPS. Optional canopy and soft cab.
|
| Transmissions: | 9-speed synchromesh
|
| | hydrostatic
|
| Photos |
| | Deutz-Allis 5215 photos... |
| Capacity |
| Fuel: | 3.7 gal
14.0 L
|
| Hydraulic system: | 4.5 gal
17.0 L
|
| Hydraulics |
| Capacity: | 4.5 gal
17.0 L
|
| Valves: | 0 to 2
|
| Pump flow: | 3.56 gpm
13.5 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1,210 lbs
548 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission (gear)
|
| | independent (hydro)
|
| Rear RPM: | 540
|
| Mid PTO: | independent*Mid PTO available with hydrostatic transmission.
|
| Mid RPM: | 2114
|
| Dimensions & Tires |
| Wheelbase: | 55.3 inches
140 cm
|
| Weight: | 1518 to 1727 pounds
|
| Front tire: | 5.00-10
|
| 2WD Rear tire: | 9.5-16
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
