Deutz F4L514 Tractors

Deutz F4L514
Power: 59 hp
Date of manufacture :
1952 - 1966
Production
Manufacturer:Deutz
Factory:Germany
Variants
F4L514/4:60 PS
F4L514/5:65 PS
Deutz F4L514 Power
Engine:59.2 hp
44.1 kW
Deutz F4L514 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:drum
Cab:Open operator station.
Transmission:7-speed gear

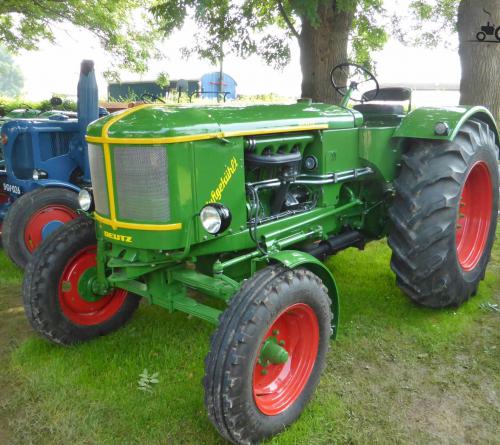

Photos
Deutz F4L514 photos...
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:96.1 inches
244 cm
Weight:6669 lbs
3025 kg
Front tire:6.50-20
Rear tire:13-30
Full dimensions and tires ...
Belt Pulley
Diameter:13.4 inches
34 cm
Width:8.7 inches
22 cm
RPM:1390
