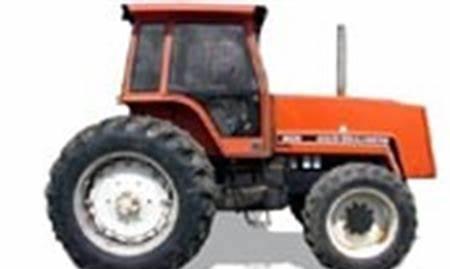

Deutz-Allis 8050 Tractors
 |
|
Power: 169 hp[P]
Date of manufacture : 1985 - 1988 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Row-Crop tractor
|
| Factory: | West Allis, Wisconsin, USA
|
| Total built: | 2,336
|
| Original price: | $58,411
|
| Variants |
| 8050: | row-crop
|
| 8050HC: | high-crop
|
| Deutz-Allis 8050 Power |
| Drawbar (tested): | 131.44 hp
98.0 kW
|
| PTO (tested): | 152.40 hp
113.6 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | foot-button
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet discs
|
| Cab: | Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.
|
| Transmissions: | 20-speed partial power shift
|
| | 12-speed Allis-Chalmers
|
| Capacity |
| Fuel: | 60 gal
227.1 L
|
| | 25 gal
94.6 L (optional tank)
|
| Rear diff.: | 66.8 qts
63.2 L
|
| Hydraulics |
| Type: | closed-center load-sensitive
|
| Valves: | 2 or 3
|
| Pump flow: | 22 gpm
83.3 lpm
|
| | 13.5 gpm
51.1 lpm (transmission)
|
| Total flow: | 45 gpm
170.3 lpm
|
| Steering flow: | 9.5 gpm
36.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift (at 24"/610mm): | 6680 lbs
3030 kg
|
| | 8200 lbs
3719 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 1000*Optional
|
| Dimensions & Tires |
| 2WD Wheelbase: | 106 inches
269 cm
|
| 4WD Wheelbase: | 96 inches
243 cm
|
| Weight: | 15305 to 16300 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 8050 Serial Numbers |
| Location: | Above PTO shield
|
| 1981: | 1001
|
| 1982: | 1016
|
| 1983: | 1924
|
| 1984: | 2496
|
| 1985: | 3187
|
| Final: | 3336
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 100
|
| Battery volts: | 12
|
|
