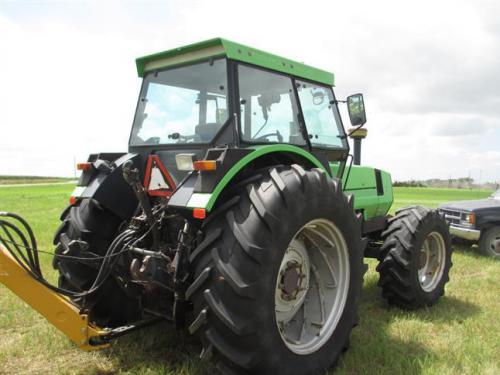

Deutz-Allis 7145 Tractors
 |
|
Power: 160 hp[P]
Date of manufacture : 1987 - 1988 |
| Production |
| Manufacturer: | Deutz-Allis
|
| Type: | Row-Crop tractor
|
| Deutz-Allis 7145 Power |
| PTO (claimed): | 144 hp
107.4 kW
|
| Drawbar (tested): | 126.60 hp
94.4 kW
|
| PTO (tested): | 144.56 hp
107.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | push-button rear
|
| | OPTICTRAC automatic front
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Detuz-Allis MasterCab standard with heat, air-conditioning, and air-suspension seat. Agrotronic instrumentation standard, optional Agrotronic II.
|
| Transmission: | 36-speed synchronized with partial power shift
|
| Capacity |
| Fuel: | 66 gal
249.8 L
|
| Hydraulic system: | 10 gal
37.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 10 gal
37.9 L
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 18.2 gpm
68.9 lpm
|
| Total flow: | 27.3 gpm
103.3 lpm
|
| Steering flow: | 9.7 gpm
36.7 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Front Hitch: | optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Front PTO: | optional
|
| Dimensions & Tires |
| Wheelbase: | 103.5 inches
262 cm (2WD)
|
| | 111.3 inches
282 cm (4WD)
|
| Weight: | 11905 to 12987 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 20.8-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Charging volts: | 14
|
| Batteries: | 2
|
| Battery volts: | 6
|
|
