Deutz F2M417 Tractors

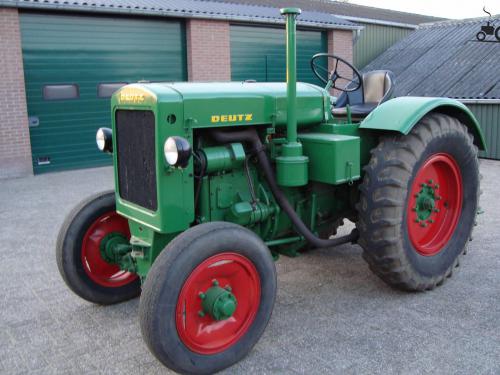

Deutz F2M417
Power: 34 hp
Date of manufacture :
1941 - 1953
Production
Manufacturer:Deutz
Factory:Germany
Deutz F2M417 Power
Engine:34.5 hp
25.7 kW
Deutz F2M417 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:5-speed gear
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:76.4 inches
194 cm
Weight:5512 lbs
2500 kg
Full dimensions and tires ...
Belt Pulley
Diameter:14.2 inches
36 cm
Width:6.7 inches
17 cm
RPM:900
