Deutz F3M417 Tractors

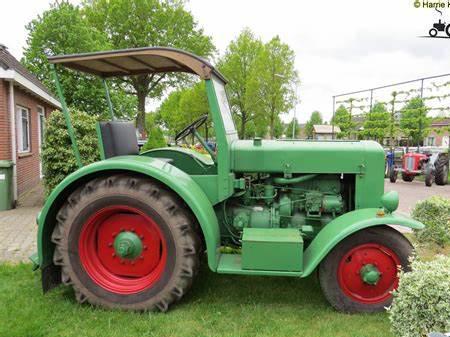

Deutz F3M417
Power: 49 hp
Date of manufacture :
1942 - 1952
Production
Manufacturer:Deutz
Factory:Germany
Deutz F3M417 Power
Engine:49.3 hp
36.8 kW
Deutz F3M417 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:5-speed gear
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:86.6 inches
219 cm
Weight:7826 lbs
3549 kg
Front tire:6.50-20
Rear tire:12.75-28
Full dimensions and tires ...
Belt Pulley
Diameter:17.7 inches
44 cm
Width:9.1 inches
23 cm
RPM:810
