Deutz-Fahr D 3607 Tractors

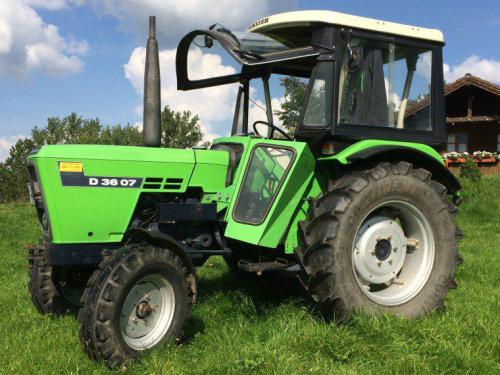

Deutz-Fahr D 3607
Power: 34 hp
Date of manufacture :
1982 - 1988
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Deutz-Fahr D 3607 Power
Engine:34 hp
25.4 kW
Deutz-Fahr D 3607 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:power
Brakes:mechanical drum
Cab:Four-post ROPS.
Transmission:8-speed gear
Photos
Deutz-Fahr D 3607 photos...
Hydraulics
Type:open center
Pressure:2538 psi
175.0 bar
Valves:1 to 3
Pump flow:9.25 gpm
35.0 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):4189 lbs
1900 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@2077
Dimensions & Tires
Wheelbase:73.5 inches
186 cm
Weight:4255 lbs
1930 kg
Front tire:6.50-16
Rear tire:13.6x28
Full dimensions and tires ...
